What is a swing device?

A comprehensive analysis of excavator swing motors, planetary gearboxes, and slewing ring mechanics

Rotational Drive
Troubleshooting
Maintenance

An excavator is characterized by its ability to dig, swing, and dump load in a continuous, highly efficient cycle. This exceptional versatility relies on the **swing device** (also referred to as the swing drive, slewing motor, or swing gearbox). The swing device is the electro-hydraulic-mechanical system that allows the excavator’s upper structure (including the operator’s cabin, diesel engine, main pump, boom, arm, and bucket) to rotate a full 360 degrees horizontally in either direction relative to the stationary undercarriage.

Without a properly functioning swing device, an excavator’s movements are severely restricted, rendering it unable to transfer dug material to haul trucks or side-cast soil without moving its crawler tracks. Because this assembly is subjected to extreme inertial forces during deceleration, it utilizes specialized relief valves, heavy reduction gearing, and high-strength bearings. We provide **premium replacement swing motors and gearboxes** for over 2,000 machine models, engineered to restore smooth, drift-free cabin rotation.

1. What is a Swing Device?

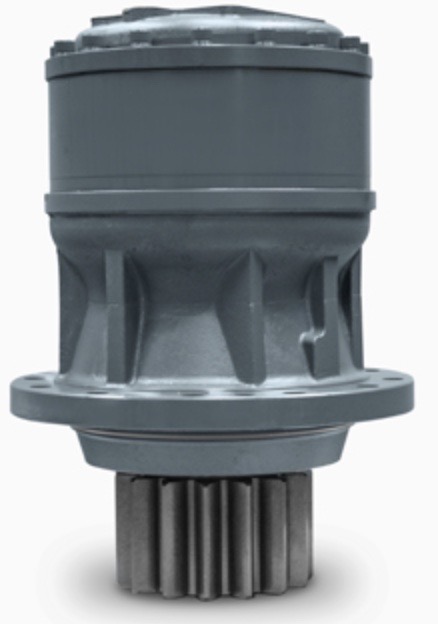

The swing device is the complete electro-hydraulic and mechanical unit that drives the horizontal rotation of heavy construction machinery. On crawler excavators, the swing drive is a single, integrated assembly consisting of two distinct sections bolted together: a hydraulic swing motor (typically an axial piston motor) and a planetary gearbox (reduction gearbox). Together with an internal wet friction brake pack and control valves, these components convert high-pressure hydraulic energy from the excavator’s engine into mechanical force to turn the pinion gear and swing the cabin.

Without the swing device, the high-pressure fluid flow generated by the hydraulic main pump could not be translated into horizontal movement. Thus, the swing device is the final link in the machine’s rotational system, determining cabin slew speed, acceleration/deceleration responsiveness, and drift-free holding power.

2. Rotational Mechanics: How Hydraulic Power Becomes Torque

The transition from hydraulic fluid power to mechanical torque follows a precise path through the excavator’s upper frame:

01

Fluid Delivery via Control Valves

The main hydraulic pump sends pressurized oil through the main control valves. Moving the swing joystick redirects pilot pressure to slide the swing spool valve, routing high-pressure oil (usually Pump 2 flow) through hoses directly to the ports of the swing piston motor.

02

Axial Piston Motor Rotation

Pressurized oil enters the motor’s cylinder block bores, pushing the pistons out against a fixed swashplate. Because the swashplate is angled, the linear push forces the cylinder block and the main input shaft to spin at high speeds, converting hydraulic energy to mechanical rotation.

03

Planetary Gearbox Reduction

The high-speed, low-torque rotation of the motor shaft is transmitted directly to the input sun gear of the planetary gearbox. The gearbox reduces the rotational speed down to around 9–12 RPM while multiplying the torque exponentially, providing the strength to swing the heavy upper structure.

04

Pinion and Slewing Ring Meshing

The output shaft of the gearbox terminates in a heavy spur gear called the pinion. This pinion gear meshes directly with the internal or external teeth of the slewing ring (swing bearing)—a massive bearing ring bolted to the excavator undercarriage. As the pinion turns, it rolls along the fixed slewing ring, rotating the entire cabin.

3. Hydraulic Control, Deceleration & Anti-Cavitation

Swinging a massive excavator cabin creates significant kinetic energy. Stopping the rotation suddenly would generate extreme pressure spikes (shock waves) capable of bursting hydraulic hoses, breaking gears, or snapping the pinion shaft. To prevent this, the swing motor block houses several critical control spools:

  • Swing Relief Valves: These valves act as safety buffers. When the operator returns the joystick to neutral, the return lines are blocked, and the motor acts as a pump due to the cabin’s momentum. The relief valves open to redirect high-pressure oil back to the opposite side of the motor, cushioning the deceleration.
  • Makeup (Anti-Cavitation) Valves: As the motor slows down, a vacuum can form on the suction side, causing cavitation (imploding air bubbles that pit metal surfaces). Makeup valves pull low-pressure oil from the return circuit to keep the motor fully charged with oil during coasting.
  • Parking Brake Pack: A wet, multi-disc friction brake integrated into the motor casing. When the pilot pressure drops (joysticks in neutral), strong springs compress the brake discs to lock the rotation. When joysticks are moved, pilot oil pressure overrides the springs, releasing the brake.

4. Structural Differences: Swing Drives vs. Travel Drives

While both travel final drives and swing drives utilize hydraulic piston motors and planetary gearboxes, their structural environments and mechanical forces are fundamentally different:

  • Load-Bearing Profiles: Travel drives are bolted directly to the track frame and act as structural hubs, carrying the actual weight of the excavator and resisting heavy axial track chain tension. Swing drives do not bear the vertical load of the machine—that is supported by the slewing ring bearing. Instead, swing drives must withstand extreme horizontal bending moments and rotational shear forces from the boom digging and slewing.
  • Rotational Inertia: Travel drives move the machine linearly, and deceleration is relatively immediate. Swing drives must accelerate and decelerate a rotating mass (often 10 to 50+ tons) extending several meters out. This creates massive rotational inertia, requiring the swing drive’s relief system to dissipate kinetic energy continuously, whereas travel drives rely on pilot brake spools.
  • Gearing Layouts: The output of a travel drive is a sprocket flange bolted directly to the track sprocket. The output of a swing gearbox is an exposed pinion shaft that extends out of the gearbox casing to mesh with the teeth of the large-diameter slewing bearing.

5. Component Analysis Matrix

Understanding the individual parts of a swing device and their common failure symptoms is critical for diagnostics and maintenance:

Component
Role & Mechanical Action
Common Issues & Diagnostic Signs


1. Swing Piston Motor
Converts fluid flow and pressure from the main pump into high-speed rotational energy using axial pistons sliding on an angled swashplate.
Internal scoring on pistons or the valve plate, leading to volumetric bypass (slippage). The cabin rotates normally cold but loses swing power when oil gets hot.


2. Planetary Gearbox
Reduces high-speed rotation and multiplies torque through 2-3 planetary stages, allowing the cabin to swing smoothly under heavy load.
Chipped planetary gears, carrier cracking, or bearing wear. Causes low-frequency growling, grinding noises, or rotation lock-up if gear oil runs dry.


3. Pinion Gear & Shaft
The output shaft of the gearbox featuring a spur gear that meshes directly with the internal or external teeth of the slewing ring bearing.
Sheared or chipped teeth on the pinion gear due to sudden stops or metal fatigue. Causes heavy clunking, jumping, or popping when swing starts or stops.


4. Slewing Ring (Bearing)
A massive ball or roller bearing ring that connects the undercarriage to the upper frame, supporting the cabin and boom weight.
Worn internal ball bearings or gear tracks due to lack of grease. Manifests as vertical play (tipping clearance >3mm) or heavy popping under load.


5. Brake Pack & Reliefs
Wet friction discs locked by springs and released by pilot pressure, combined with cushion relief valves for controlled deceleration.
Worn friction discs or weak springs; leaking relief valves. Manifests as cabin overrun or slewing drift on slopes when joysticks are released.

CRITICAL MAINTENANCE TIP: Gearbox vs. Bearing Grease
It is common for operators to confuse the gearbox lubrication with the slewing ring lubrication. The swing gearbox is a sealed unit containing **gear oil (API GL-5 SAE 80W-90)** which must be checked with a dipstick and drained/refilled. The slewing ring bearing and the meshing pinion gear are lubricated separately with **heavy EP2 lithium grease** through grease nipples on the chassis. Never mix grease into the gearbox or run the gearbox without oil.

Frequently Asked Questions About Swing Devices

What is the difference between a swing motor and a swing gearbox?
The swing motor is a high-speed hydraulic axial piston motor that converts hydraulic oil flow from the main pump into mechanical rotation. The swing gearbox (swing reduction unit) is a multi-stage planetary gearbox mounted directly beneath the motor. It reduces the high rotation speed of the motor down to 9–12 RPM while multiplying the torque exponentially to rotate the heavy upper structure.

Why does my excavator cabin drift when I release the joysticks?
Cabin drift (slewing drift) occurs when the upper structure continues to rotate after controls are returned to neutral. This is typically caused by worn wet-friction brake discs inside the swing motor, leaking relief valves allowing hydraulic oil to bypass the pistons, or worn piston shoes reducing the motor’s holding torque.

What type of oil is used in the swing device gearbox?
Excavator swing gearboxes contain heavy-duty gear oil, typically API GL-5 rated SAE 80W-90 or SAE 90. This gear oil must be checked regularly and changed according to manufacturer service intervals (usually every 1,000 operating hours) to prevent gear wear.

How do I check for wear in the slewing ring bearing?
To check for slewing bearing wear, place a dial indicator between the upper frame and the undercarriage, extend the boom fully, and push the bucket down to apply load. Lift the boom and repeat. Any vertical play or tipping clearance exceeding manufacturer limits (typically 1.5 to 3 mm depending on machine size) indicates internal ball or roller wear.
